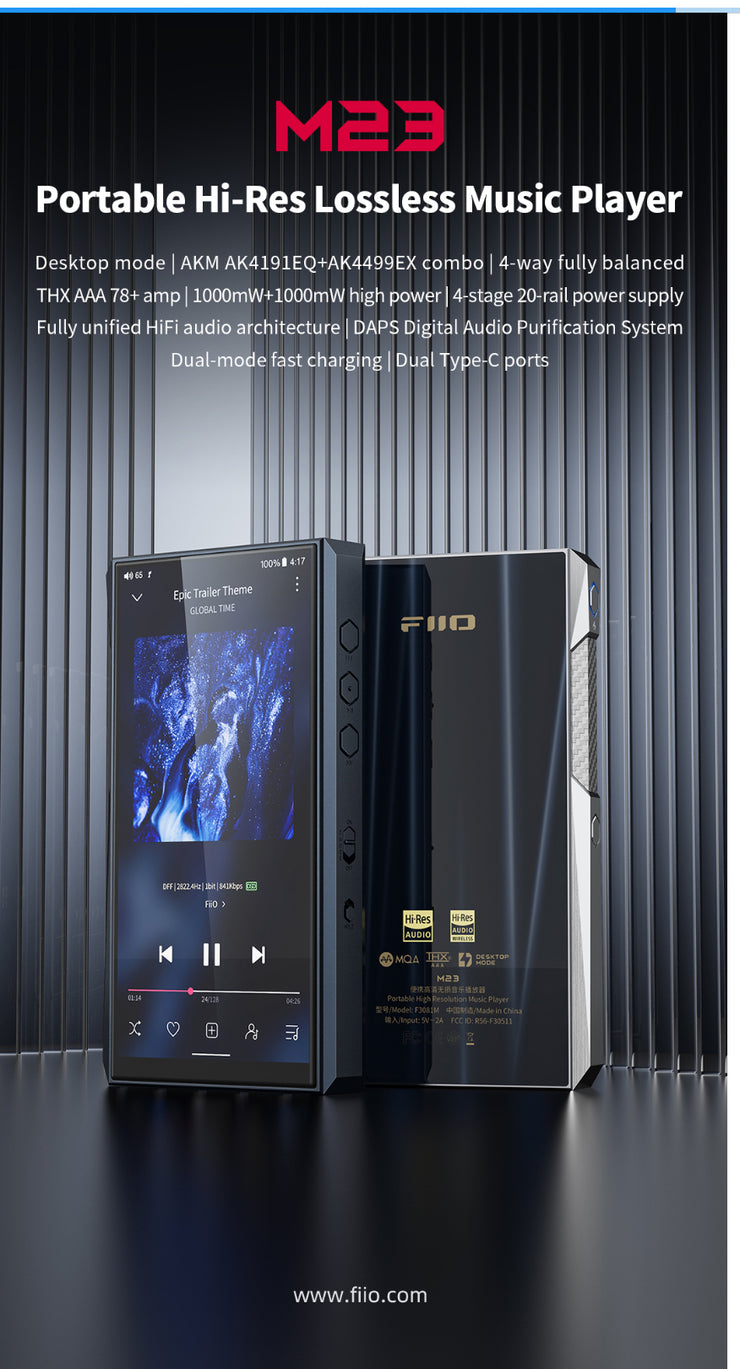

FiiO M23 Hi-Res Lossless Music Player (DAP) (In Stock)
FiiO M23 Hi-Res Lossless Music Player (DAP)
Ear-Fidelity Review:
https://www.ear-fidelity.com/fiio-m23-review/
Head-Fi.org Review:
https://www.head-fi.org/showcase/fiio-m23.27179/reviews
DAC upgraded from ES9068AS to AKM flagship DAC combination AK4191EQ+AK4499EX. Headphone amplifier upgraded to THX 78+, with a 54% increase in output power at 32Ω and a remarkable 162% increase at 300Ω when the Super Large Ear Mode is activated. Added an independent desktop mode switch, allowing for one-key activation of the desktop mode. Introduced a separate charging and power supply interface. When using POWER IN for charging, the Super Charge Pump can be activated, reaching a maximum charging current of 5.5A. Charging nearly 50% can be achieved in half an hour, 80% in one hour, and a full charge takes only 2 hours, reducing charging time by 43% compared to<head><meta charset="UTF-8" /></head>
As an iteration model of the M11 Plus series, the M23 not only continues the classic hexagonal honeycomb design and the 18:9 golden ratio of FIIO, but also sees significant upgrades in configuration, performance, and user experience. It aims to fully create a mid-to-high-end portable Android HiFi player that combines both excellent performance and listening experience.
Get the “core” with AKM flagship DAC combo
Like the Q15 and K9 AKM, the M23 utilizes the flagship AKM DAC combo —— the AK4191EQ+AK4499EX. It is a new design that totally separates the digital and analog portions and also features the “DWA ROUTING Technology” to further improve the signal-to-noise ratio. These technologies allow for a purer audio background and higher resolution audio – resulting in a relaxed yet natural sound.
Double Type-C ports, patented Desktop Mode
The M23 is FIIO’s first portable player with dual Type-C ports, one of which is dedicated to accepting power only (POWER IN). When this dedicated power Type-C port is connected to fast charging, the Super High Gain Mode can be activated for more gain and more output power. In this mode, the output power can reach up to 1000mW+1000mW per channel, making the M23 better suited for pushing high impedance headphones. While in this mode, the other Type-C port does not consume any power and thus makes it suitable to connect the M23 to a phone for use as a USB DAC.
In addition, the M23 also follows FIIO’s latest patented technology - Desktop mode (D.MODE), with a switch specifically for toggling. When the D.MODE is activated, the M23 is completely powered by an external power source. The built-in battery will neither be charged nor discharged, which ensures the M23 can be used as desktop equipment without fear of damaging the battery.
4-way fully balanced THX AAA 78+ amp design
FIIO, as one of the audio manufacturers with the earliest and most widely adopted THX amp design, has long mastered and polished the THX headphone amplifier architecture. The THX AAA 78 headphone amplifiers as used in the M11 Plus and M11 Pro have been widely praised by audiophiles around the world. After several years of continuing to refine the design, we introduce the THX AAA 78+ amplifier architecture in the M23. It allows for greater power output with high fidelity, resulting in powerful sound reproduced with extreme accuracy.
Dual-mode fast charging, 5500mAh large battery
The M23 employs a dual-mode fast-charging system that utilizes extreme fast-charging + normal fast charging. At a lower battery state of charge, extreme fast-charging is used to safely allow for up to 30W charging speeds. When the battery gets close to a full state of charge, the M23 switches to slightly slower normal fast-charging, which allows for greatly improved charging times while still maintaining battery health.
The specially selected low-resistance fast-charging batteries5500mAh that employ high-temperature resistant material are paired with technologies such as a low resistance MOS protection board to ensure the batteries will last a long time.
For other features, such as fully unified HiFi audio architecture, 4 gain levels, 4-stage 20-rail ultra decent power supply, digital and analog separated power supply, 28 high-capacity polymer tantalum capacitors, self-developed Digital Audio Purification System (DAPS), six operating modes including Ronn Ready, global PEQ, global ALL TO DSD, please check the product page on our website.
