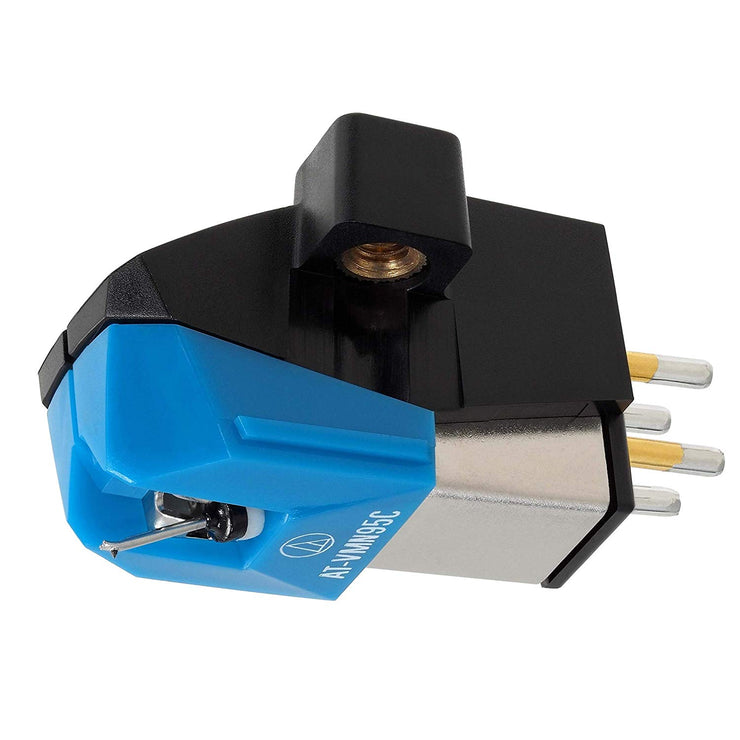

Audio-Technica AT-VM95C Cartridge with Conical Stylus (VM9C)

ATVM95C

VM95 SERIES CONICAL STEREO CARTRIDGE

AT-VM95C

VM95 SERIES CONICAL STEREO CARTRIDGE

The AT-VM95C, the new Audio-Technica entry model Conical cartridge will replace the legendary AT90 Series models such as AT91, AT91R and CN5625AL

Also the AT-VM95C is a “budget” cartridge featuring a conical stylus, the compatibility in the range will allow to upgrade with any of the 4 other LP styli of the Series such as Elliptical, Elliptical Nude, Microlinear and Shibata.

Aluminium cantilever
4.0mV output voltage
Compatible body with all VM95 Series stylus assemblies
Replacement for AT91, AT91R and CN5625AL

VM95 SERIES – STYLI COMPATIBILITY

Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

AT-VMN95C

AT-VMN95E

AT-VMN95EN

AT-VMN95ML

AT-VMN95SH

AT-VMN95SP

AT-VM9E SERIES COMPATIBILITY WITH THE AT-XP SERIES DJ CARTRIDGES

The electromagnetic engine-body of XP-Series, is fully compatible with all replacement styli of VM95 Series and will deliver more output voltage than VM95 Series cartridge. So providing improved compatibility with phono inputs of Professional DJ Mixers.
VM95 Series electromagnetic engine-body is also compatible with the three replacement styli of the DJ cartridge AT-XP Series, nevertheless, the electromagnetic engine-body of XP-Series, will deliver more output voltage than VM95 Series cartridge in order to provide better compatibility with phono inputs of Professional DJ Mixers.
Note that typical tracking force when using XP Series styli is three grams as opposed to two grams for VM95 Series styli.
The suspension design and compliance of XP-Series styli have been optimized for intensive DJ’ing, including possible manual cueing and back-cueing.
The VM95 Series suspension design and compliances of VM95 Series have been designed for optimum audiophile reproduction.

ATN-XP7

ATN-XP5

ATN-XP3

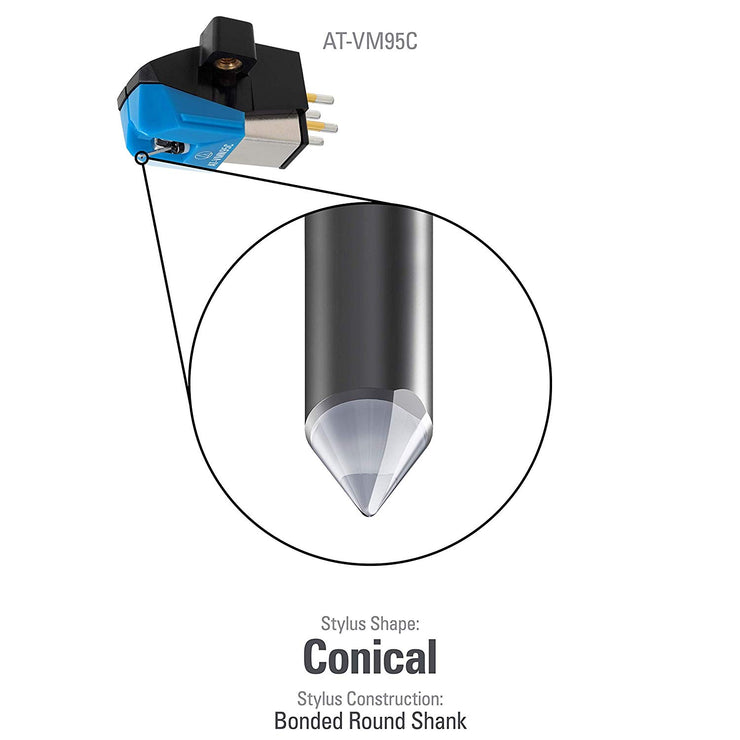

CONICAL BONDED STYLUS

The benefit of conical styli, even if the cartridge is “lean”, is the ball surface of the stylus touches the groove of vinyl records precisely.

NO USE OF NUTS

VM95 Series cartridges features two M2.6 threaded inserts allowing the installation of the cartridge onto tonearm or removable headshell without the use of nuts.Each cartridge is provided with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws and two plastic washers.

Model	AT-VM95C
Type	VM Stereo Dual Magnet
Mounting	1/2” centres
Frequency Response	20 – 20,000 Hz
Channel Separation	18 dB (1 kHz)
Output Channel Balance	2.5 dB (1 kHz)
Output Voltage	4.0 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle	23°
Vertical Tracking Force Range	1.8 – 2.2g (standard 2.0 g)
Stylus Shape	Conical
Stylus Size	0.6 mil
Stylus Construction	Bonded Round Shank
Cantilever	Aluminium Pipe
Coil Impedance	3.3 kΩ (1 kHz)
Coil Inductance	550 mH (1 kHz)
DC Resistance	485 Ω
Static Compliance	17 x 10 – 6 cm / dyne
Dynamic Compliance	6.5 x 10 – 6 cm / dyne (100 Hz)
Wire Used for Coil	T.P. Copper
Recommended Load Impedance	47,000 Ω
Recommended Load Capacitance	100-200 pF
Cartridge Weight	6.1g
Dimensions	17.2 x 18.9 x 28.3 ( H x W x D mm)
Replacement Stylus	AT-VMN95C
Accessories Included	Two 11 mm installation screws; Two 8 mm installation screws; Two washers
